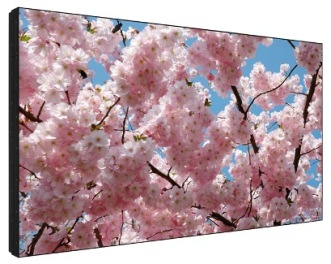

  sharp pn-v601 videowall

Designed for sophisticated video wall applications, the PN-V601 offers an extremely slim bezel. As a flexible digital signage solution with 24/7 certified reliability and an almost seamless bezel (just 6.5 mm total between neighboring monitors), the PN-V601 sets a new standard for video wall displays. A full-array LED backlight helps ensure uniform brightness, and an enlarge (zoom) display mode enables one image to be expanded across up to 25 monitors (in a 5x5 configuration). An optional PN-ZR01 Control Kit permits all monitors in a video wall to be operated using a single remote, and the optional PN-ZB02 Interface Expansion Board expands the input/output capability of each display.

Features

  • 60" Class (60" Diagonal) Screen Size - with Sharp ASV LCD Technology provides exceptionally deep blacks and bright vivid colors with up to 700 cd/m2 brightness and 2400:1 contrast ratio.
  • Extremely Slim Bezel - Thanks to its ultra-slim bezel, multiple PN-V601 monitors can be joined together to create high impact multi-screen displays, without the "window-pane" effect from other types of monitors with wide bezels. The total width of the bezel between neighboring monitors in a multi-screen display is only 6.5 mm (2.4mm on the right and bottom, and 4.1 mm on the left and top). This means a total non-display area for neighboring monitors of only 7.1 mm.
  • Full Array LED Backlight - gives the PN-V601 more uniform brightness than conventional CCFL backlighting. LED elements are positioned across the entire panel directly behind the liquid crystal layers, helping ensure beautiful uniform images.
  • 1366 x 768 Resolution - from analog RGB, digital RGB and HDTV video sources. When used in a 3x3 video wall display, this Professional LCD Monitor provides over 4K x 2K total resolution (4098 x 2304 pixels) for ultra-high resolution / ultra-high impact images.
  • Enlarge (Zoom) Display Mode - enables one image to be spread across up to 25 monitors (in up to a 5x5 configuration). The Frame Width Adjustment function eliminates misalignment and helps enhance the enlarged image in a multi-screen display.
  • 24/7 Certified - for use in most commercial applications.
  • 3-Year On-Site Limited Warranty - covers parts, labor and backlight in both landscape and portrait modes.
  • Built-in 10 Watt per Channel Amplifier - for use with external stereo speakers.
  • Extensive Interface Capability - Standard interfaces include HDMI® input, D-Sub 15-pin RGB input, stereo audio input, stereo audio line-output and RS-232C input/output.
  • Optional Input/Output Expansion Board (PN-ZB02) - adds DVI-D input/output, 5-BNC analog RGB input, component video input, S-video input, composite video input (BNC), stereo audio (RCA) input x 2, RJ-45 LAN display control and stereo speaker output (10W x 2).
  • Compatible with SDSS™ Sharp Digital Signage Software
  • ENERGY STAR® Qualified - with exceptionally low power consumption.

Technical Specifications:

Basic Specifications:

Screen Size Class
60" Class (60" Diagonal)
Bezel Width
2.4 mm right and bottom (approx 3/32"); 4.1 mm left and top (approx 5/32"). Bezel width between neighboring monitors in multi-screen display: 6.5 mm (approx 1/4"). (Total non-display area for neighboring monitors: 7.1 mm, approx 9/32")
Native Display Resolution
1366 x 768
Maximum Brightness
700 cd/m2
Landscape and Portrait Mode Operation
Yes
Certified for 24/7 Continuous Operation
Yes
Fan-Less Architecture
No
Audio
10W + 10W Stereo Amplifier (for use with external speakers)
LCD Type
ASV LCD
Number of Colors (approx.)
16.77 Million
Contrast Ratio
2400:1
Aspect Ratio
16:9
Viewing Angle
176º H x 176º V (CR>/=10)
Active Screen Area
52-5/16” (W) x 29-7/16 (H)
1328.8 mm (W) x 747.1mm (H)
Frame Rate
60 Hz
Pixel Pitch
0.97275 (H/V)
Video System
NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
Computer Input - Video
Analog RGB (0.7 Vp-p) [75-ohm], Digital (conforms to DVI 1.0 standards)
Computer Input - Synchronization
Horizontal / Vertical separation (TTL: positive/negative), Sync on green, composite sync (TTL: positive/negative)
Computer Input - Plug & Play
VESA DDC2B
Power Management
VESA DPMS, DVI DMPM
Response Time
6 ms (gray to gray, avg)

Terminals:

PC/AV Video Input
Analog mini D-sub 15-pin; HDMI® (HDCP Compatible) DVI-D 24-pin (requires optional PN-ZB02); Analog 5-BNC (requires optional PN-ZB02; analog RGB and component are menu selectable).
PC/AV Audio Input
3.5 mm mini stereo jack
Video Input
Composite Video - BNC (requires optional PN-ZB02)
S-Video Input
5-Pin DIN (requires optional PN-ZB02)
Component Video
BNC (Y, Cb/Pb,Cr/Pr) (requires optional PN-ZB02; component video and analog RGB are menu selectable).
HDMI®
Yes - compatible for both PC and AV components
Audio (AV)
RCA pin (L/R) x 2 (requires optional PN-ZB02)
Computer Output
DVI-D 24-pin (HDCP compatible, PC/AV signal; requires optional PN-ZB02)
Audio Line Output
RCA pin (L/R) - selectable fixed or variable line output
Speaker Output
10W + 10W Stereo (6-ohms; requires optional PN-ZB02)
LAN Port
RJ-45 (requires optional PN-ZB02)
RS-232C
D-sub 9-pin
Power Output Connector
Yes - 19V

Functions:

Screen Adjustment
Auto (Clock, Phase, H-POS/V-POS) / Manual
Gain Control
Auto (Black level, Contrast) / Manual
Digital Scaling (expansion)
Yes (VGA/SVGA/XGA/SXGA -> 1366 x 768)
Digital Scaling (compression)
1920 x 1200, 1920 x 1080, 1600 x 1200, 1280 x 1024
Main User Adjustments
Clock, Phase, H-POS/V-POS, Black level, Contrast; Color temp (15 steps preset + 5600K/9300K + User setting); Color mode (Standard/sRGB/Vivid); Gamma (1.8/2.0/2.2/2.4/User setting); Brightness, Volume, Audio (Treble/Bass/Balance), OSD-POS; Picture Adjustment (Tint, Color Intensity) (PC/AV mode); R/G/B/Y/M/C independent adjustment (AV mode)
Information
Model No., Serial No. etc.
Real Time Clock Setting
Yes
Scheduling Function
Yes (time, day of the week)
All Reset
Yes
Reset
Screen/Picture/Audio adjustment setting, etc.
Adjustment Lock
YES (incl. Power button)
Daisy Chain (DVI-D)
Optional (PN-ZB02): max. 5 units (HDCP compliant). (Splitter required for more than 6 units.)
Enlarge
Yes (Up to 5x5)
Frame Width Adjustment
Yes
PinP / PbyP
Yes (PinP : 12 steps)
Power On Delay
1-60 seconds (with 1 second interval)
Audio Input Change
Yes
Picture Flip
No
Self Adjust
Yes (PC Analog Input)
Log Save / Output
Yes
Temperature Control
Yes
Hardware Diagnosis
Yes
Monitor Control Software Support
Yes
Web Browser Setting (LAN)
Optional (PN-ZB02)
E-Mail Notification
Optional (PN-ZB02)
SNMP
Optional (PN-ZB02)
Overscan Setting (AV Input)
Yes
Image Size Change Function
Yes
Resolution Change Function (PC analog)
Yes
RS-232C Communication Speed Change
Yes
Conversion of Stereo Audio to Monaural
No
Selection of Audio Input per image input
Yes
Internal / External Speaker Select
No. External Only (with Optional PN-ZB02)

Weight & Dimensions:

Product Dimensions (wxhxd) (inches)
52-5/8" (W) x 5-7/8" (D) x 29-11/16" (H) (1335.9mm x 149.3mm x 754.2mm)
Package Dimensions (wxhxd) (inches)
62-7/32" (W) x15" (D) x 36-11/16" (H) (1580mm x 381mm x 932mm)
Net Product Weight (lbs.)
97 lbs. (approx. 44kg)
Shipping Weight (lbs.)
121.3 lbs. (approx. 55kg)





ISE 2011: Construction of Sharp

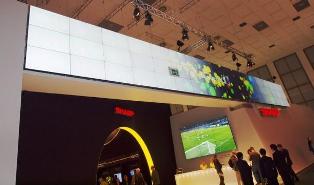

An oversized cube can be seen at ISE 2011 -- but just how did it get there? Using sixty-four 60" screens, Sharp has created an authentic, three-dimensional, cube-shaped space on its ISE exhibition stand which seems to absorb visitors. This spectacular installation made of the frameless monitors PN-V601 is the result of considerable effort by a team of technicians and fitters. Watch how they built the Sharp Cube in fast motion...

pdf Click here for the Brochure

pdf Click here for the Operation Manual
